How To Convert Voltage Gain In Db. Voltage gain (db) = 20×log (audio output voltage / audio input voltage). When voltage gain(a v) or current gain (a i) is plotted against frequency the −3db points are where the gain falls to 0.707 of the maximum (mid band) gain.
Amplifier Gain Amplifiers and Active Devices from www.allaboutcircuits.com
0 db, 3 db or 10 db. We will try to express the number 47 as a sum or subtraction of the three important values we saw before: 60db is a ratio of 1000
60Db Is A Ratio Of 1000
Ultimately you want a line level of 0.5 to 1.0v from the phono stages output to. Find the output voltage for a system with input voltage of 5v and voltage gain of 6db. 40 db power gain is 10,000 times the power factor.
How To Convert Power Gain, Voltage Gain, And Current Gain In Decibel (Db)?
The power ratio is proportional to the square of the voltages. Gain ratio (v r = v 2 /v 1) gain/loss in db (db) V out = v in ⋅ 10 (g db / 20) = 5v ⋅ 10 (6db / 20) = 9.976v ≈ 10v.
Beginning Voltage (V 1) Volts.
Dbu = dbv + 2.21; P 1 p 2 = u 2 1 u 2 2 = (u 1 u 2)2 p 1 p 2 = u 1 2 u 2 2 = ( u 1 u 2) 2. If the voltage gain of a circuit is 6db, the power gain is also 6db.
In Dbm The Reference Level Is 1Mw (One Milliwatt) And Power Gain In Dbm Is Measured Similarly To Db.

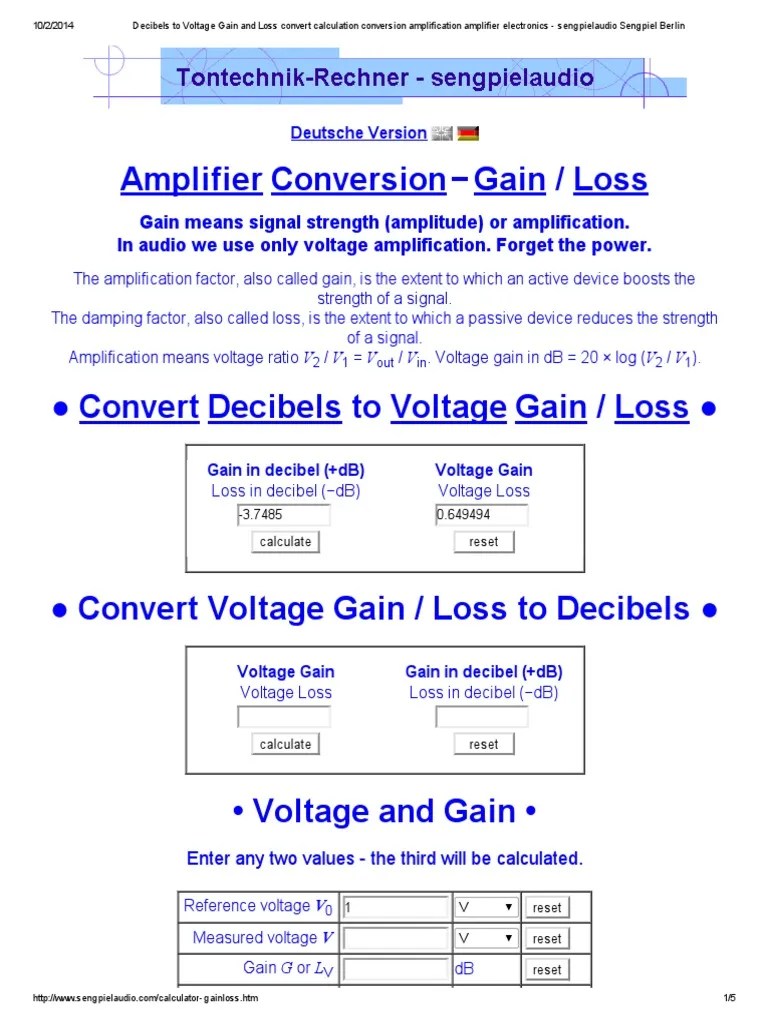

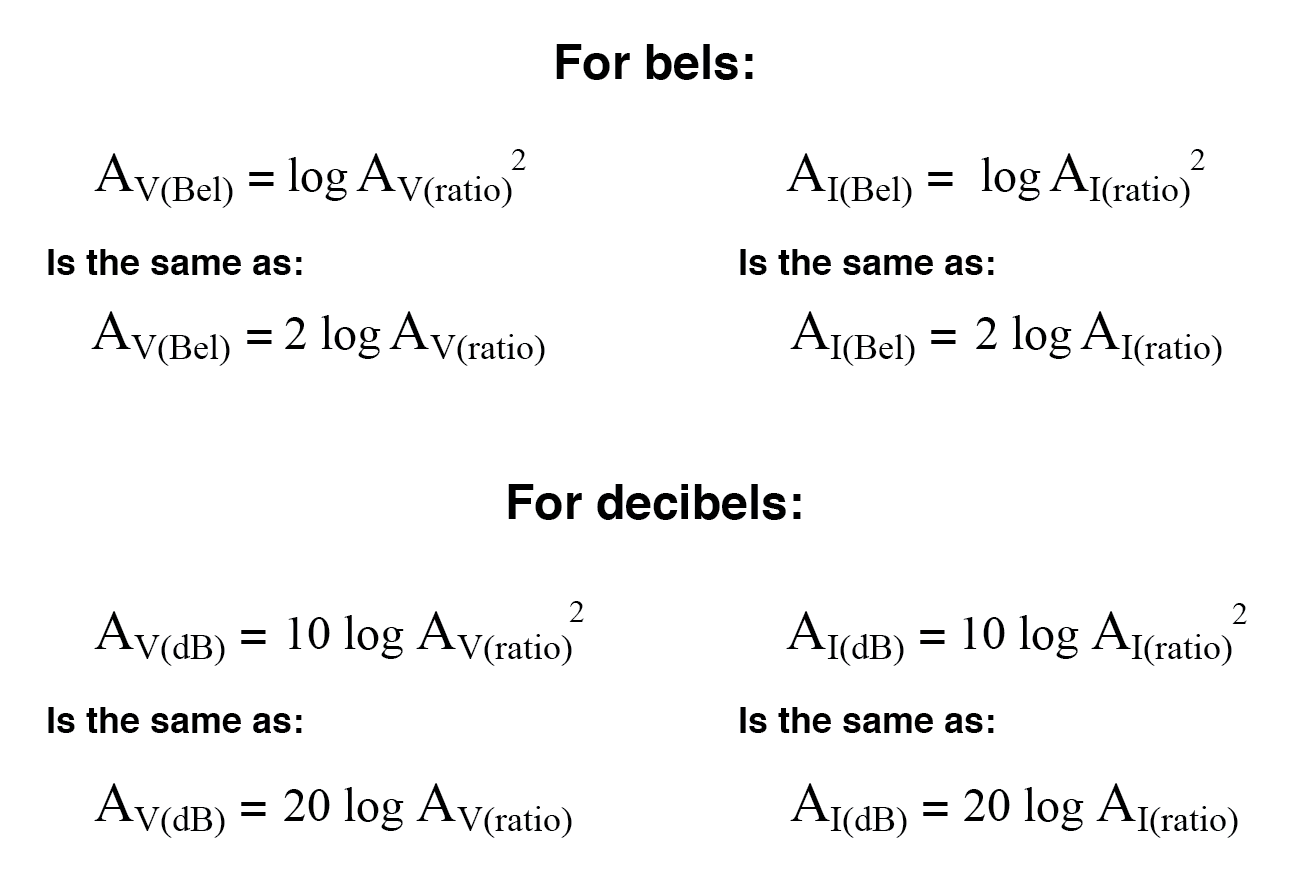

Volts = 10 (dbv/20) dbu = 20 log (volts/0.775) dbv = 20 log (volts) Voltage gain = voltage out / voltage in. Db(w) = 10⋅log10( p 1 p 2) d b ( w) = 10 · l o g 10 ( p 1 p 2) = 10⋅log10(u 1 u 2)2 = 10 · l o g 10 ( u 1 u 2) 2 = 20⋅log10(u 1 u 2) = 20 · l o g 10 ( u 1 u 2) a voltage ratio of 1:10.
In My Entire Audio Career I Never Used Logarithms To Calculate Voltage Gain To Db Or Db To Gain.
40 db power gain is 10,000 times the power factor (energy). Db = 20log10(v1/v2) = 10log10(p1/p2) you can also use this calculator to find out the power gain and voltage gain from the decibel value. Just enter the decibel value and leave power gain & voltage gain blank, and then hit the calculate button.
